  • TUNGALOY EPD05R050U0050-02 Milling Cutter 90.0°, Corn Cob 0.500 Cutter Diameter Cylindrical Shank0.5000 3.000 OAL 2 Flute

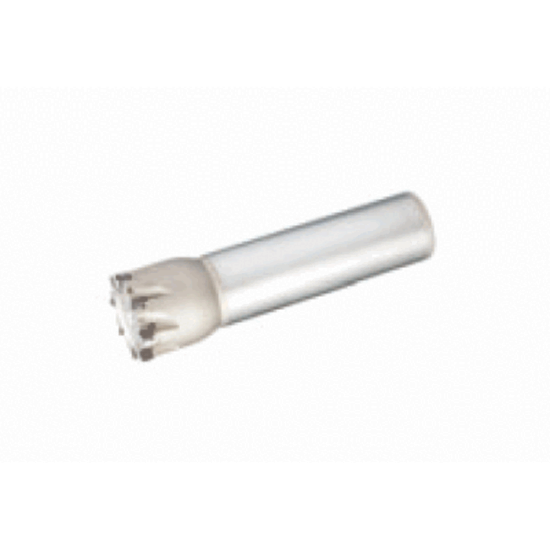

Picture of TUNGALOY EPD05R050U0050-02 Milling Cutter 90.0°, Corn Cob 0.500 Cutter Diameter Cylindrical Shank0.5000 3.000 OAL 2 Flute

TUNGALOY EPD05R050U0050-02 Milling Cutter 90.0°, Corn Cob 0.500 Cutter Diameter Cylindrical Shank0.5000 3.000 OAL 2 Flute

ANSI: EPD05R050U0050-02

ISO: EPD05R050U0050-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6162396
Delivery date: 3-5 days
$268.50
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Side Milling, Long Edge Milling
Insert Application Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Insert Size Ic 5
Cut Dia Min 0.5000 12.70MM - 1/2
Tool Material Steel
Depth Of Cut Max 0.4700
Cut Dia Max 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.0000 76.20MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SD
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4351854
