  • TUNGALOY EPD05R020M20.0W04 Milling Cutter 90.0° 0.787 Cutter Diameter Weldon 0.7874 4.133 OAL 4 Flute

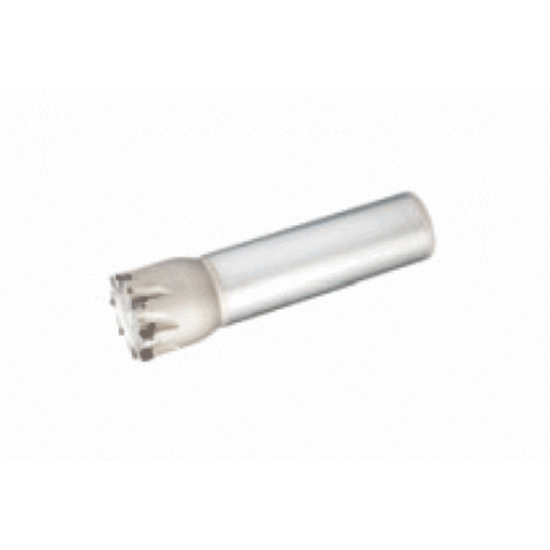

Picture of TUNGALOY EPD05R020M20.0W04 Milling Cutter 90.0° 0.787 Cutter Diameter Weldon 0.7874 4.133 OAL 4 Flute

TUNGALOY EPD05R020M20.0W04 Milling Cutter 90.0° 0.787 Cutter Diameter Weldon 0.7874 4.133 OAL 4 Flute

ANSI: EPD05R020M20.0W04

ISO: EPD05R020M20.0W04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6162089
Delivery date: 3-5 days
$376.40

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cut Dia Min 0.7870 19.99MM
Shank/Pilot Dia 0.7874 20.00MM
Depth Of Cut Max 0.1575
Machine Side Connection Size 0.7874 20.00MM
Insert Size Ic 5
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Flutes/Inserts 4
Cutter Dia 0.7870 19.99MM
Machine Side Connection Type Weldon
Overall Len 4.1339 105.00MM
Cutting & Machining Properties
Insert Style SD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 4351854
