  • TUNGALOY EPD05R016M16.0-03 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.6299 4.330 OAL 3 Flute

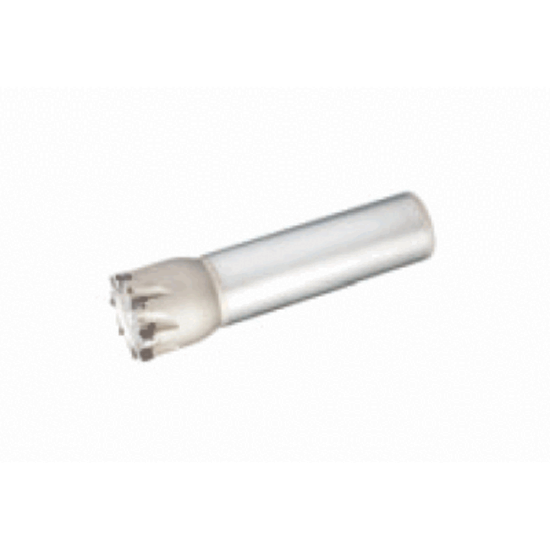

Picture of TUNGALOY EPD05R016M16.0-03 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.6299 4.330 OAL 3 Flute

TUNGALOY EPD05R016M16.0-03 Milling Cutter 90.0° 0.630 Cutter Diameter Cylindrical Shank0.6299 4.330 OAL 3 Flute

ANSI: EPD05R016M16.0-03

ISO: EPD05R016M16.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6162121
Delivery date: 3-5 days
$320.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Depth Of Cut Max 0.1575
Cut Dia Max 0.6300 16.00MM
Insert Size Ic 5
Cut Dia Min 0.6300 16.00MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Flutes/Inserts 3
Cutter Dia 0.6300 16.00MM
Overall Len 4.3307 110.00MM
Cutting & Machining Properties
Insert Style SD
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 4351854
