  • TUNGALOY EPD05R012M12.0-02 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 2 Flute

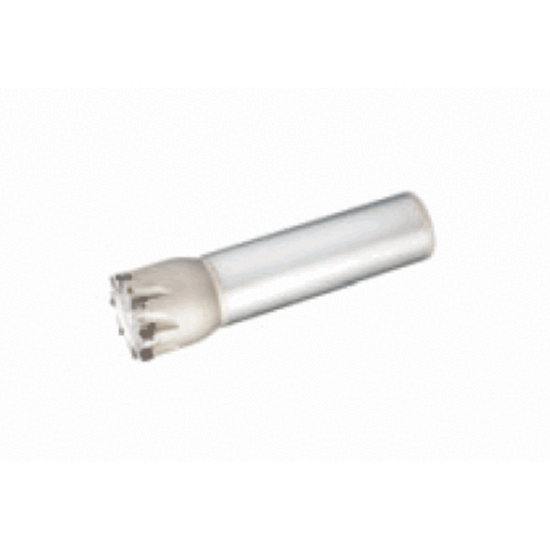

Picture of TUNGALOY EPD05R012M12.0-02 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 2 Flute

TUNGALOY EPD05R012M12.0-02 Milling Cutter 90.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.149 OAL 2 Flute

ANSI: EPD05R012M12.0-02

ISO: EPD05R012M12.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6162120
Delivery date: 3-5 days
$268.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Illinois
Insert/Tool Tool
Application Face Milling, Side Milling
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Tool Material Steel
Cut Dia Min 0.4720 11.99MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cut Dia Max 0.4720 11.99MM
Depth Of Cut Max 0.1575
Cutter Dia 0.4720 11.99MM
Overall Len 3.1496 80.00MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern External
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SD
Fasteners & Connectors
Insert Screw 4351854
