  • TUNGALOY EPA10R150U0125W02L Milling Cutter 90.0° 1.500 Cutter Diameter Weldon 1.2500 10.00 OAL 2 Flute

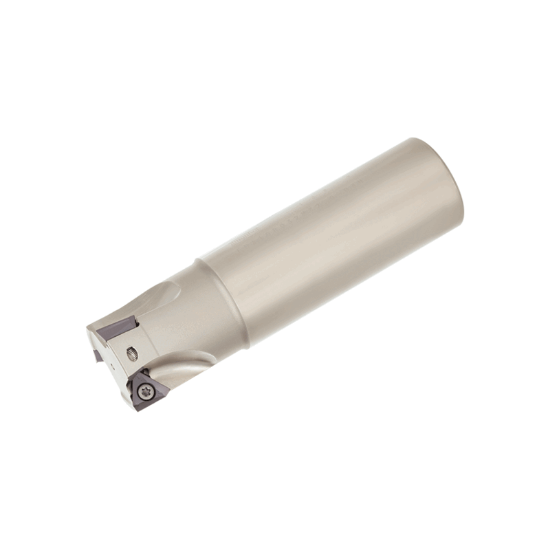

Picture of TUNGALOY EPA10R150U0125W02L Milling Cutter 90.0° 1.500 Cutter Diameter Weldon 1.2500 10.00 OAL 2 Flute

TUNGALOY EPA10R150U0125W02L Milling Cutter 90.0° 1.500 Cutter Diameter Weldon 1.2500 10.00 OAL 2 Flute

ANSI: EPA10R150U0125W02L

ISO: EPA10R150U0125W02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996215
Delivery date: 3-5 days
$484.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Illinois
Made In USA No
Dimensional Specifications
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Overall Len 10.0000 254.00MM
Depth Of Cut Max 0.5900
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Min 1.5000 38.10MM - 1-1/2
Flutes/Inserts 2
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cut Dia Max 1.5000 38.10MM - 1-1/2
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
