  • TUNGALOY EPA10R125U0125W03N Milling Cutter 90.0° 1.250 Cutter Diameter Weldon 1.2500 3.740 OAL 3 Flute

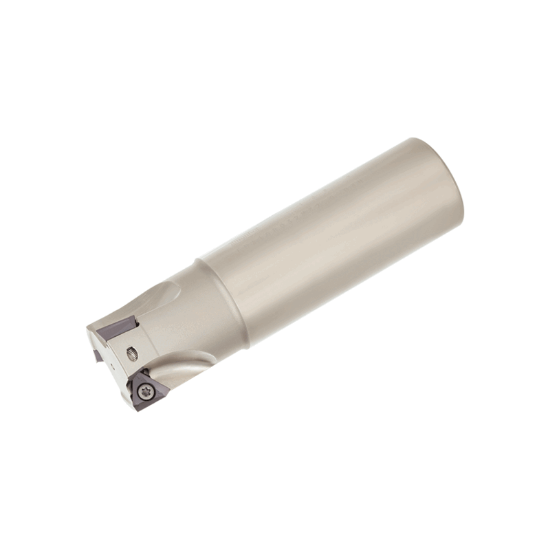

Picture of TUNGALOY EPA10R125U0125W03N Milling Cutter 90.0° 1.250 Cutter Diameter Weldon 1.2500 3.740 OAL 3 Flute

TUNGALOY EPA10R125U0125W03N Milling Cutter 90.0° 1.250 Cutter Diameter Weldon 1.2500 3.740 OAL 3 Flute

ANSI: EPA10R125U0125W03N

ISO: EPA10R125U0125W03N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996211
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Face Milling, Slot Milling, Pocket Milling
Insert Type Positive
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.2500 31.75MM - 1-1/4
Insert Size Ic 10
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 3
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 3.7400 95.00MM
Depth Of Cut Max 0.3940
Cut Dia Min 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002353
