  • TUNGALOY EPA10R040M32.0-04N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

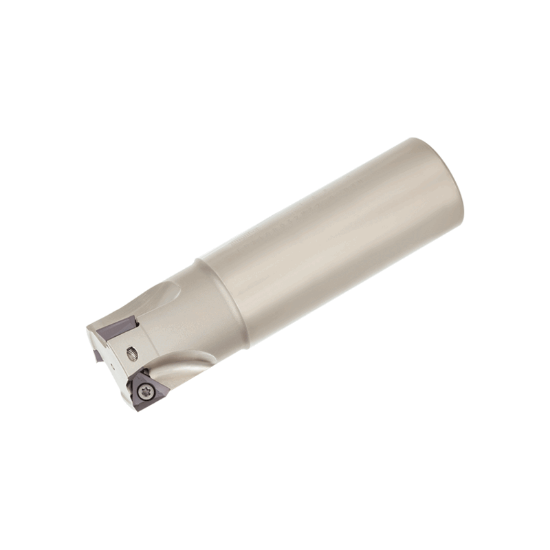

Picture of TUNGALOY EPA10R040M32.0-04N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

TUNGALOY EPA10R040M32.0-04N Milling Cutter 90.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

ANSI: EPA10R040M32.0-04N

ISO: EPA10R040M32.0-04N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996198
Delivery date: 3-5 days
$484.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Application Pocket Milling, Slot Milling, Ramp Milling, Side Milling, Face Milling
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Insert Size Ic 10
Cut Dia Min 1.5750 40.01MM
Overall Len 4.7244 120.00MM
Cut Dia Max 1.5750 40.01MM
Depth Of Cut Max 0.0394
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
