  • TUNGALOY EPA10R035M32.0-02N Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

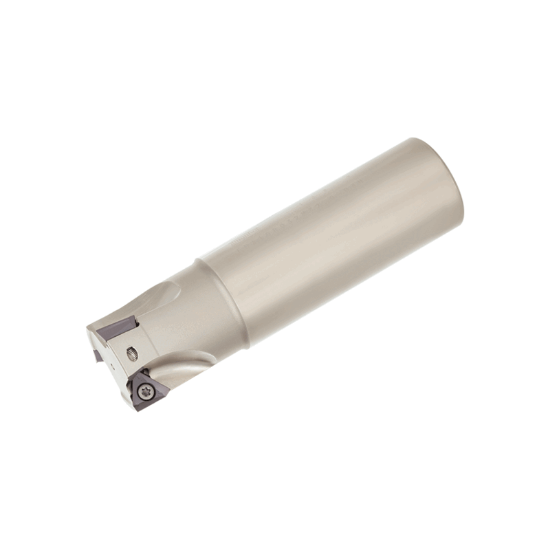

Picture of TUNGALOY EPA10R035M32.0-02N Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

TUNGALOY EPA10R035M32.0-02N Milling Cutter 90.0° 1.378 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

ANSI: EPA10R035M32.0-02N

ISO: EPA10R035M32.0-02N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996195
Delivery date: 3-5 days
$407.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Ramp Milling, Slot Milling, Pocket Milling, Side Milling
Package Size 1
Made In USA No
Shipping State Illinois
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 1.3780 35.00MM
Cut Dia Max 1.3780 35.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.0394
Machine Side Connection Type Cylindrical
Insert Size Ic 10
Overall Len 4.7244 120.00MM
Cut Dia Min 1.3780 35.00MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002353
