  • TUNGALOY EPA10R032M32.0-02N Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

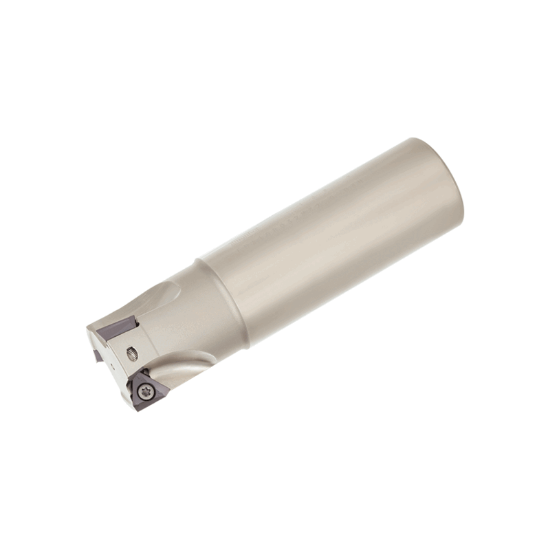

Picture of TUNGALOY EPA10R032M32.0-02N Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

TUNGALOY EPA10R032M32.0-02N Milling Cutter 90.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

ANSI: EPA10R032M32.0-02N

ISO: EPA10R032M32.0-02N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6995385
Delivery date: 3-5 days
$407.45

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Face Milling, Pocket Milling, Ramp Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Insert Size Ic 10
Cut Dia Max 1.2600 32.00MM
Overall Len 4.7244 120.00MM
Depth Of Cut Max 0.0394
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 2
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Tool Material Steel
Cutter Dia 1.2600 32.00MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
