  • TUNGALOY EPA10R028M25.0-02N Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

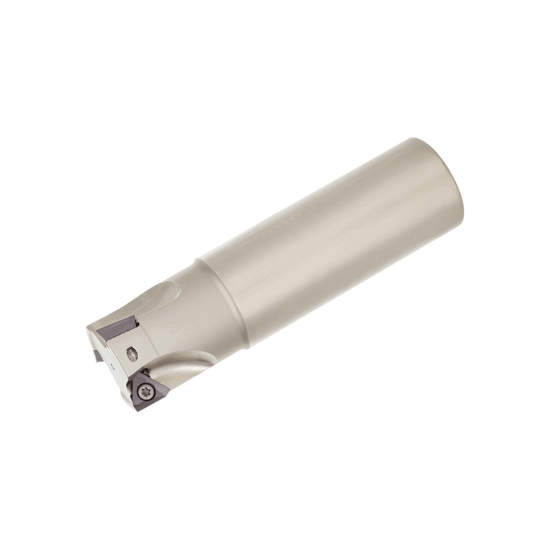

Picture of TUNGALOY EPA10R028M25.0-02N Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

TUNGALOY EPA10R028M25.0-02N Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

ANSI: EPA10R028M25.0-02N

ISO: EPA10R028M25.0-02N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996194
Delivery date: 3-5 days
$381.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Pocket Milling, Face Milling, Ramp Milling, Slot Milling, Side Milling
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Insert Size Ic 10
Cut Dia Min 1.1020 27.99MM
Cut Dia Max 1.1020 27.99MM
Depth Of Cut Max 0.0394
Machine Side Connection Type Cylindrical
Overall Len 4.5276 115.00MM
Cutter Dia 1.1020 27.99MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002353
