  • TUNGALOY EPA10R028M25.0-02L Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

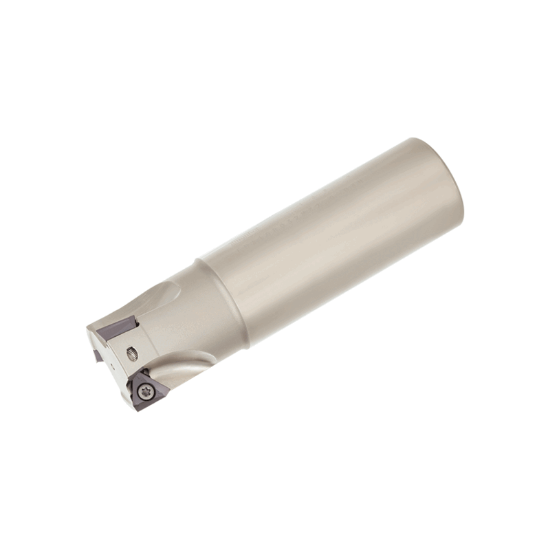

Picture of TUNGALOY EPA10R028M25.0-02L Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

TUNGALOY EPA10R028M25.0-02L Milling Cutter 90.0° 1.102 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

ANSI: EPA10R028M25.0-02L

ISO: EPA10R028M25.0-02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996200
Delivery date: 3-5 days
$411.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Application Ramp Milling, Slot Milling, Pocket Milling, Face Milling, Side Milling
Insert/Tool Tool
Insert Type Positive
Insert Application Semi Finishing, Roughing
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Cutter Dia 1.1020 27.99MM
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 10
Tool Material Steel
Cut Dia Min 1.1020 27.99MM
Cut Dia Max 1.1020 27.99MM
Depth Of Cut Max 0.0394
Flutes/Inserts 2
Overall Len 8.6614 220.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Insert Style TO
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 7002353
