  • TUNGALOY EPA10R025M25.0-02N Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

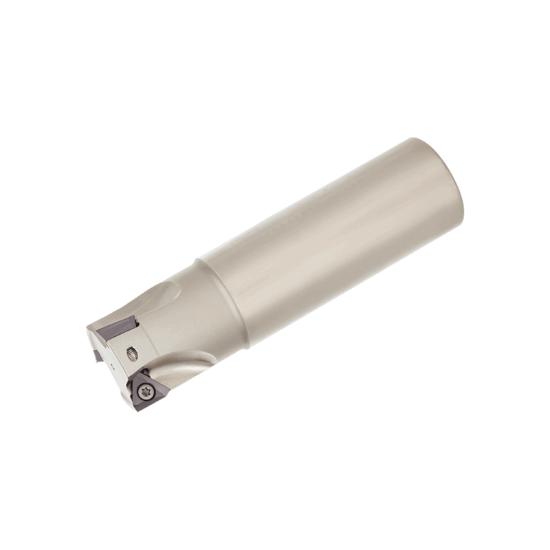

Picture of TUNGALOY EPA10R025M25.0-02N Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

TUNGALOY EPA10R025M25.0-02N Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

ANSI: EPA10R025M25.0-02N

ISO: EPA10R025M25.0-02N

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996193
Delivery date: 3-5 days
$381.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Slot Milling, Pocket Milling, Ramp Milling, Side Milling
Insert/Tool Tool
Shipping State Illinois
Insert Application Roughing, Semi Finishing
Made In USA No
Package Size 1
Dimensional Specifications
Cutter Dia 0.9840 24.99MM
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Overall Len 4.5276 115.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 10
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Depth Of Cut Max 0.0394
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Insert Style TO
Hand R/L Right
Fasteners & Connectors
Insert Screw 7002353
