  • TUNGALOY EPA10R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

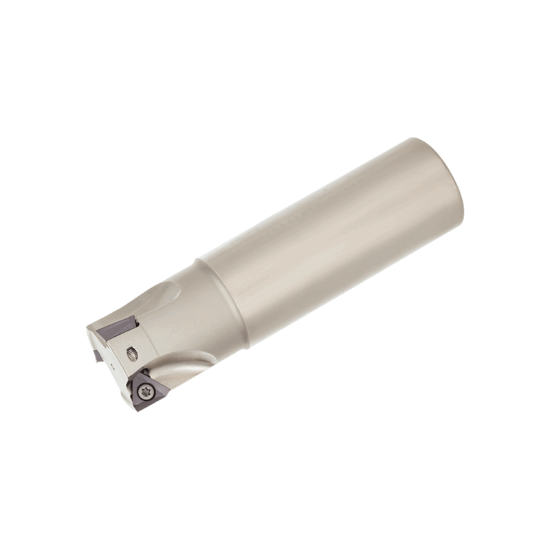

Picture of TUNGALOY EPA10R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

TUNGALOY EPA10R025M25.0-02L Milling Cutter 90.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

ANSI: EPA10R025M25.0-02L

ISO: EPA10R025M25.0-02L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6996199
Delivery date: 3-5 days
$411.85

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ramp Milling, Slot Milling, Side Milling, Pocket Milling, Face Milling
Insert Application Roughing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.0394
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Overall Len 8.6614 220.00MM
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 10
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TO
Fasteners & Connectors
Insert Screw 7002353
