  • TUNGALOY EME4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.732 OAL 4 Flute

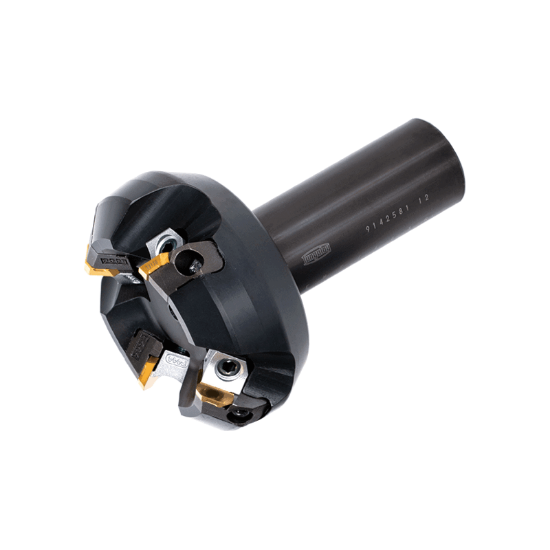

Picture of TUNGALOY EME4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.732 OAL 4 Flute

TUNGALOY EME4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.732 OAL 4 Flute

ANSI: EME4463R

ISO: EME4463R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804290
Delivery date: 3-5 days
$616.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Chamfering, Face Milling
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Insert Size Ic 12
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.5512
Tool Material Steel
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 3.4330 87.20MM
Overall Len 4.7323 120.20MM
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Coolant Thru No
Insert Style SE
Fasteners & Connectors
Clamp/Wedge 6809565
Clamp Screw 6801818
