  • TUNGALOY ELS11R040M42.0W03 Milling Cutter 90.0°, Corn Cob 1.575 Cutter Diameter Cylindrical Shank1.6535 5.905 OAL 12 Flute

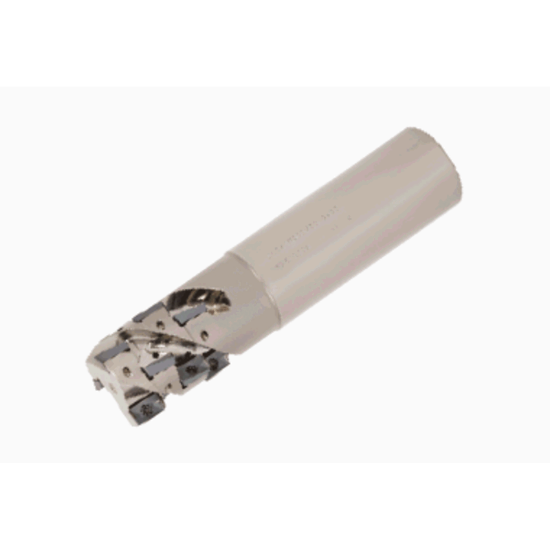

Picture of TUNGALOY ELS11R040M42.0W03 Milling Cutter 90.0°, Corn Cob 1.575 Cutter Diameter Cylindrical Shank1.6535 5.905 OAL 12 Flute

TUNGALOY ELS11R040M42.0W03 Milling Cutter 90.0°, Corn Cob 1.575 Cutter Diameter Cylindrical Shank1.6535 5.905 OAL 12 Flute

ANSI: ELS11R040M42.0W03

ISO: ELS11R040M42.0W03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6885602
Delivery date: 3-5 days
$1,543.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Insert Application Roughing
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 1.5750 40.01MM
Tool Material Steel
Flutes/Inserts 12
Insert Size Ic 11
Depth Of Cut Max 1.4960
Machine Side Connection Size 1.6535 42.00MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 1.6535 42.00MM
Overall Len 5.9055 150.00MM
Cutter Dia 1.5750 40.01MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru Yes
Insert Style AS
Fasteners & Connectors
Insert Screw 6815313
