  • TUNGALOY ELP13025RA Milling Cutter 90.0°, Corn Cob 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 5 Flute

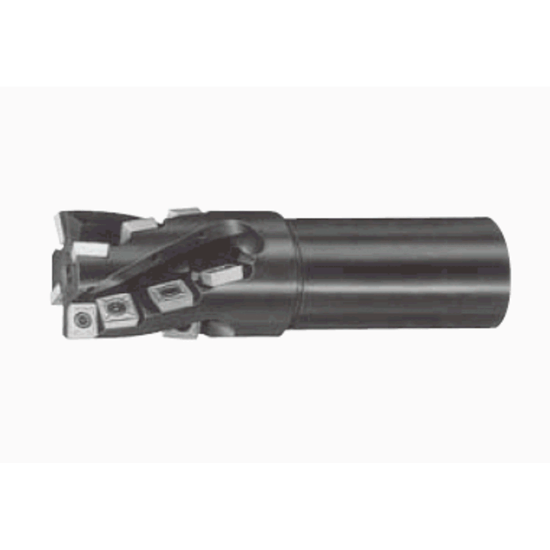

Picture of TUNGALOY ELP13025RA Milling Cutter 90.0°, Corn Cob 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 5 Flute

TUNGALOY ELP13025RA Milling Cutter 90.0°, Corn Cob 0.984 Cutter Diameter Weldon 0.9843 2.042 OAL 5 Flute

ANSI: ELP13025RA

ISO: ELP13025RA

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6816622
Delivery date: 3-5 days
$648.50

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Package Size 1
Insert Application Roughing
Made In USA No
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Flutes/Inserts 5
Insert Size Ic 13
Shank/Pilot Dia 0.9843 25.00MM
Depth Of Cut Max 0.2756
Cutter Dia 0.9840 24.99MM
Overall Len 2.0420 51.87MM
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru No
Insert Style AD
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Fasteners & Connectors
Insert Screw 6815313, 6815315
