  • TUNGALOY ELD05R020M20.0W02 Milling Cutter 90.0°, Corn Cob 0.787 Cutter Diameter Weldon 0.7874 3.346 OAL 10 Flute

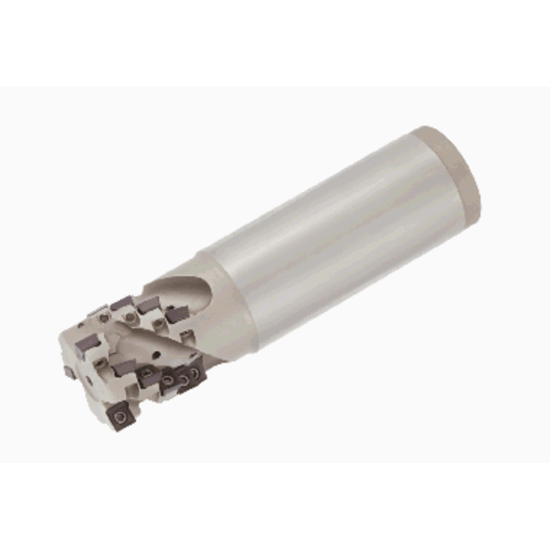

Picture of TUNGALOY ELD05R020M20.0W02 Milling Cutter 90.0°, Corn Cob 0.787 Cutter Diameter Weldon 0.7874 3.346 OAL 10 Flute

TUNGALOY ELD05R020M20.0W02 Milling Cutter 90.0°, Corn Cob 0.787 Cutter Diameter Weldon 0.7874 3.346 OAL 10 Flute

ANSI: ELD05R020M20.0W02

ISO: ELD05R020M20.0W02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3104453
Delivery date: 3-5 days
$819.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Insert Type Positive
Package Size 1
Insert Application Roughing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Depth Of Cut Max 0.1570
Machine Side Connection Size 0.7874 20.00MM
Flutes/Inserts 10
Shank/Pilot Dia 0.7874 20.00MM
Cut Dia Min 0.7870 19.99MM
Cutter Dia 0.7870 19.99MM
Insert Size Ic 5
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Machine Side Connection Type Weldon
Overall Len 3.3465 85.00MM
Cutting & Machining Properties
Insert Style SD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Fasteners & Connectors
Insert Screw 4351854
