  • TUNGALOY EGD4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 4 Flute

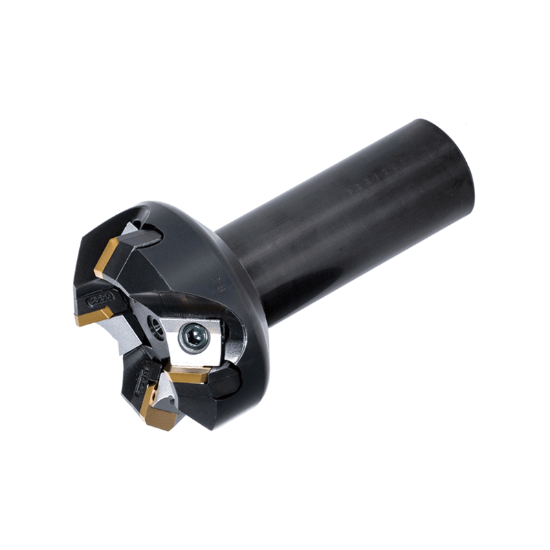

Picture of TUNGALOY EGD4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 4 Flute

TUNGALOY EGD4463R Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 4 Flute

ANSI: EGD4463R

ISO: EGD4463R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804237
Delivery date: 3-5 days
$616.15

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Illinois
Insert Type Positive
Made In USA No
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Depth Of Cut Max 1.8898
Overall Len 4.5276 115.00MM
Insert Size Ic 12
Machine Side Connection Size 1.2598 32.00MM
Flutes/Inserts 4
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Max 3.1100 78.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SD
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6809842
Clamp Screw 6801065
