  • TUNGALOY EFP4063R Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

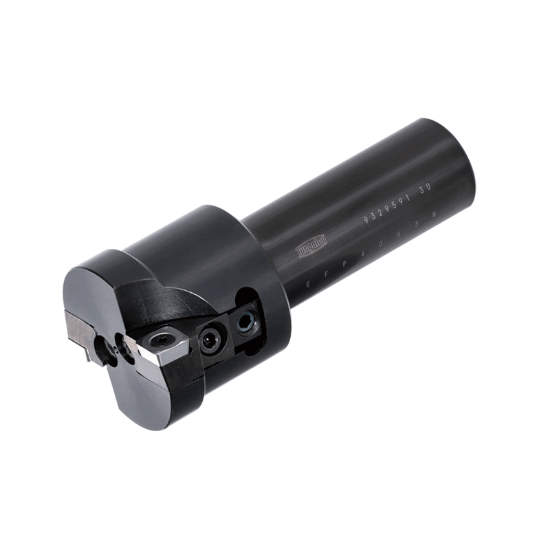

Picture of TUNGALOY EFP4063R Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

TUNGALOY EFP4063R Milling Cutter 90.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 2 Flute

ANSI: EFP4063R

ISO: EFP4063R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804233
Delivery date: 3-5 days
$445.65

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Application Face Milling
Dimensional Specifications
Insert Size Ic 43
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 2
Tool Material Steel
Overall Len 4.7244 120.00MM
Depth Of Cut Max 0.1575
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 6802547
