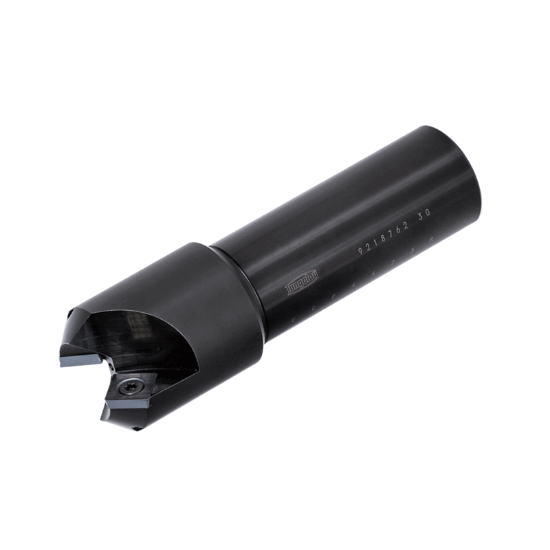

TUNGALOY ECP4436R Milling Cutter 45.0° 1.417 Cutter Diameter Cylindrical Shank1.2598 5.118 OAL 3 Flute
TUNGALOY ECP4436R Milling Cutter 45.0° 1.417 Cutter Diameter Cylindrical Shank1.2598 5.118 OAL 3 Flute
ANSI: ECP4436R
ISO: ECP4436R
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
TUNGALOY
SKU:
TUN6804226
Delivery date:
3-5 days
$295.30
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
File Downloads
DXF
STP
STPL
Products specifications
Attribute name
Attribute value
General Product Information
Insert/Tool
Tool
Application
Chamfering, Countersinking
Insert Type
Positive
Package Size
1
Insert Application
General Purpose
Shipping State
Illinois
Made In USA
No
Dimensional Specifications
Cut Dia Max
2.0980 53.29MM
Machine Side Connection Type
Cylindrical
Insert Size Ic
42
Shank/Pilot Dia
1.2598 32.00MM
Overall Len
5.1181 130.00MM
Chamfer Angle
45.0°
Cutter Dia
1.4170 35.99MM
Tool Material
Steel
Depth Of Cut Max
0.0039
Cut Dia Min
1.4170 35.99MM
Machine Side Connection Size
1.2598 32.00MM
Flutes/Inserts
3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape
Square
Hand R/L
Right
Insert Style
SP
Coolant Thru
No
Fasteners & Connectors
Insert Screw
6802547
