  • TUNGALOY ECC31005RU-60 Milling Cutter 60.0° 2.170 Cutter Diameter Cylindrical Shank1.0000 4.252 OAL 2 Flute

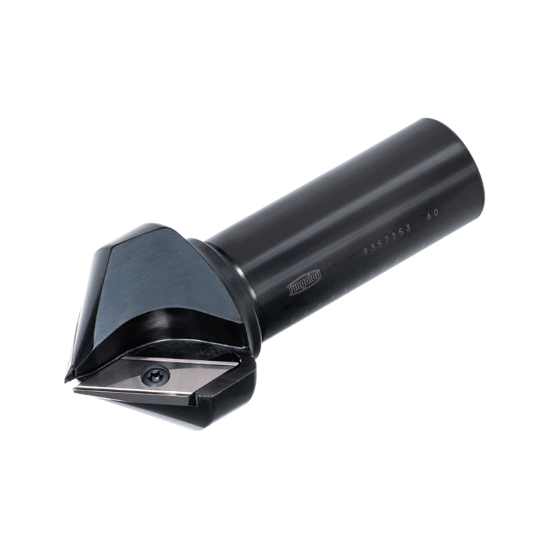

Picture of TUNGALOY ECC31005RU-60 Milling Cutter 60.0° 2.170 Cutter Diameter Cylindrical Shank1.0000 4.252 OAL 2 Flute

TUNGALOY ECC31005RU-60 Milling Cutter 60.0° 2.170 Cutter Diameter Cylindrical Shank1.0000 4.252 OAL 2 Flute

ANSI: ECC31005RU-60

ISO: ECC31005RU-60

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829416
Delivery date: 3-5 days
$506.00

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Chamfering, Countersinking
Package Size 1
Dimensional Specifications
Overall Len 4.2520 108.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Insert Size Ic 31
Cutter Dia 2.1700 55.12MM
Tool Material Steel
Chamfer Angle 60.0°
Cut Dia Max 2.8340 71.98MM
Flutes/Inserts 2
Depth Of Cut Max 0.4170
Cut Dia Min 2.1700 55.12MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Insert Style XC
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802583
