  • TUNGALOY ECC31005RU-30 Milling Cutter 30.0° 1.338 Cutter Diameter Cylindrical Shank1.0000 4.258 OAL 1 Flute

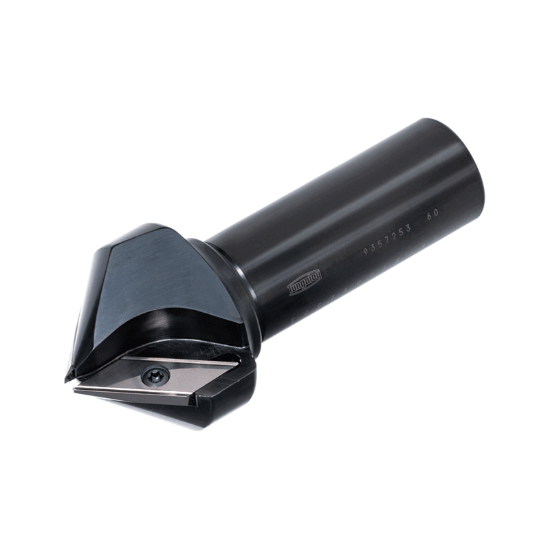

Picture of TUNGALOY ECC31005RU-30 Milling Cutter 30.0° 1.338 Cutter Diameter Cylindrical Shank1.0000 4.258 OAL 1 Flute

TUNGALOY ECC31005RU-30 Milling Cutter 30.0° 1.338 Cutter Diameter Cylindrical Shank1.0000 4.258 OAL 1 Flute

ANSI: ECC31005RU-30

ISO: ECC31005RU-30

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6822058
Delivery date: 3-5 days
$405.45

Details

LONG LENGTH WITH SMALL MINIMUM BORE CHAMFER MILL. GREAT FINISH ON LONG CHAMFERS.

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert/Tool Tool
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Application Chamfering, Countersinking
Package Size 1
Dimensional Specifications
Insert Size Ic 31
Flutes/Inserts 1
Tool Material Steel
Cutter Dia 1.3380 33.99MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.3380 33.99MM
Cut Dia Max 1.5750 40.01MM
Chamfer Angle 30.0°
Depth Of Cut Max 0.2756
Machine Side Connection Type Cylindrical
Overall Len 4.2580 108.15MM
Cutting & Machining Properties
Insert Style XC
Insert Shape/Cutter Pocket Shape Parallelogram
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802583
