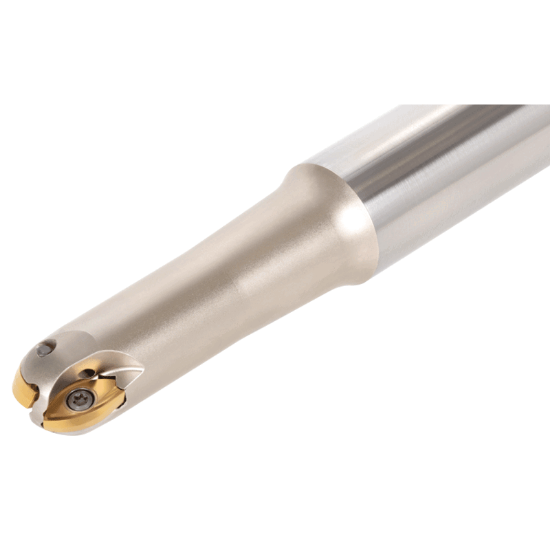

Picture of TUNGALOY EBRU100SW100S0600 Milling Cutter 1.000 Cutter Diameter Weldon 1.0000 6.000 OAL 2 Flute

TUNGALOY EBRU100SW100S0600 Milling Cutter 1.000 Cutter Diameter Weldon 1.0000 6.000 OAL 2 Flute

ANSI: EBRU100SW100S0600

ISO: EBRU100SW100S0600

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6166364
Delivery date: 3-5 days
$430.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Profile Milling, Copy Milling
Package Size 1
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Cut Dia Min 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.0800
Cut Dia Max 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 6.0000 152.40MM
Machine Side Connection Type Weldon
Flutes/Inserts 2
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Ball
Hand R/L Right
Fasteners & Connectors
Insert Screw 4351684
