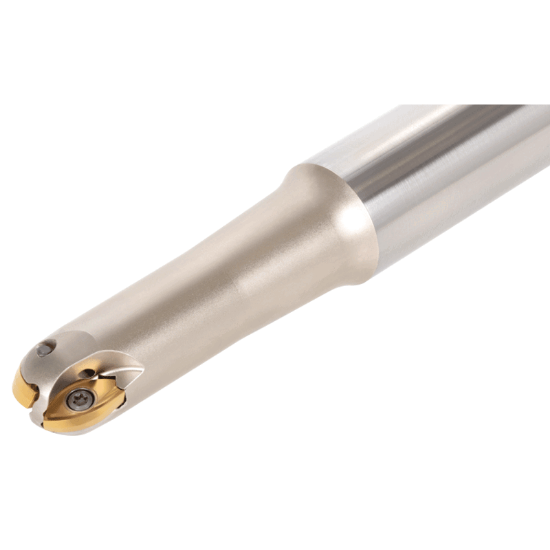

Picture of TUNGALOY EBRM20T25S220 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

TUNGALOY EBRM20T25S220 Milling Cutter 0.787 Cutter Diameter Cylindrical Shank0.9843 8.661 OAL 2 Flute

ANSI: EBRM20T25S220

ISO: EBRM20T25S220

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3113052
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Copy Milling, Profile Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Machine Side Connection Type Cylindrical
Cut Dia Min 0.7870 19.99MM
Overall Len 8.6614 220.00MM
Depth Of Cut Max 0.6969
Cutter Dia 0.7870 19.99MM
Flutes/Inserts 2
Cut Dia Max 0.7870 19.99MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Ball
Coolant Thru Yes
Hand R/L Right
Fasteners & Connectors
Insert Screw 4353673
