  • TUNGALOY EBRM16T20S130 Milling Cutter 0.630 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

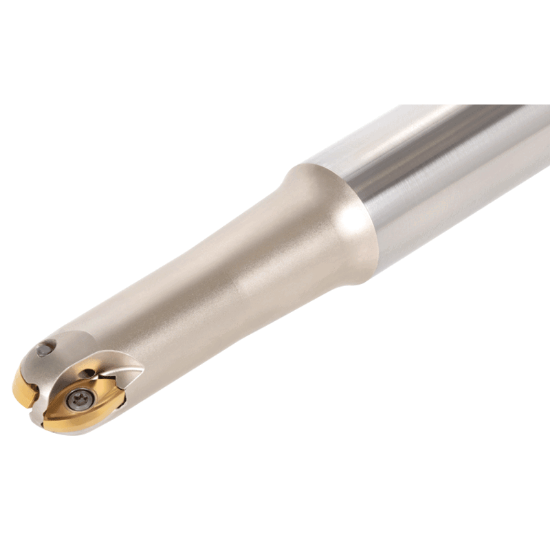

Picture of TUNGALOY EBRM16T20S130 Milling Cutter 0.630 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

TUNGALOY EBRM16T20S130 Milling Cutter 0.630 Cutter Diameter Cylindrical Shank0.7874 5.118 OAL 2 Flute

ANSI: EBRM16T20S130

ISO: EBRM16T20S130

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN3113047
Delivery date: 3-5 days
$314.90

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Copy Milling, Profile Milling
Dimensional Specifications
Overall Len 5.1181 130.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.4646
Cutter Dia 0.6300 16.00MM
Cut Dia Min 0.6300 16.00MM
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Ball
Fasteners & Connectors
Insert Screw 4351486
