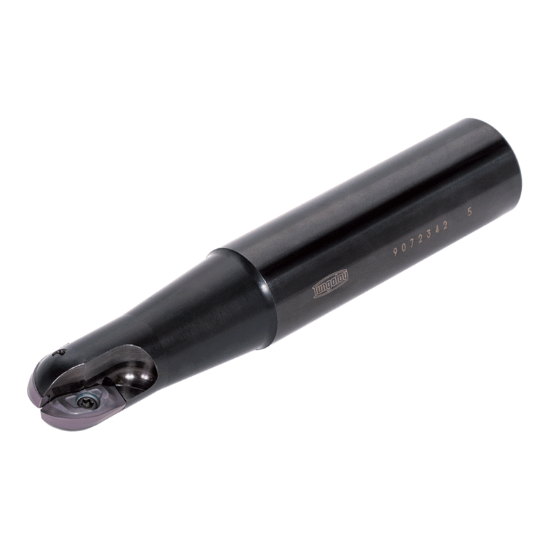

Picture of TUNGALOY EBP075MWU Milling Cutter 0.750 Cutter Diameter Weldon 1.0000 5.030 OAL 2 Flute

TUNGALOY EBP075MWU Milling Cutter 0.750 Cutter Diameter Weldon 1.0000 5.030 OAL 2 Flute

ANSI: EBP075MWU

ISO: EBP075MWU

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6829366
Delivery date: 3-5 days
$397.50
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Application Copy Milling, Profile Milling
Dimensional Specifications
Flutes/Inserts 2
Machine Side Connection Type Weldon
Tool Material Steel
Cut Dia Max 0.7500 19.05MM - 3/4
Overall Len 5.0300 127.76MM
Cutter Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.8270
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Coolant Thru No
Hand R/L Right
Insert Shape/Cutter Pocket Shape Other
Fasteners & Connectors
Insert Screw 6810167
