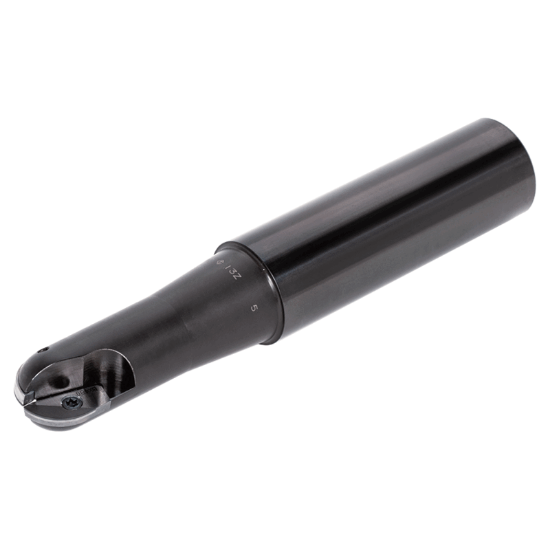

Picture of TUNGALOY EBB030MS Milling Cutter 1.181 Cutter Diameter Cylindrical Shank1.2598 7.874 OAL 2 Flute

TUNGALOY EBB030MS Milling Cutter 1.181 Cutter Diameter Cylindrical Shank1.2598 7.874 OAL 2 Flute

ANSI: EBB030MS

ISO: EBB030MS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811066
Delivery date: 3-5 days
$557.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Copy Milling, Profile Milling
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.9055
Cut Dia Min 1.1810 30.00MM
Overall Len 7.8740 200.00MM
Flutes/Inserts 2
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 1.1810 30.00MM
Tool Material Steel
Cutter Dia 1.1810 30.00MM
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Insert Screw 6802580
