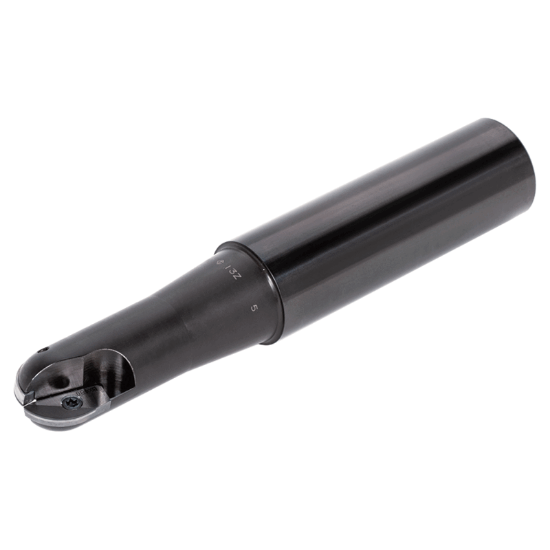

Picture of TUNGALOY EBB025MS Milling Cutter 0.984 Cutter Diameter Cylindrical Shank1.2598 7.086 OAL 2 Flute

TUNGALOY EBB025MS Milling Cutter 0.984 Cutter Diameter Cylindrical Shank1.2598 7.086 OAL 2 Flute

ANSI: EBB025MS

ISO: EBB025MS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6811065
Delivery date: 3-5 days
$545.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Application Copy Milling, Profile Milling
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.7087
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Overall Len 7.0866 180.00MM
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 1.2598 32.00MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Other
Hand R/L Right
Fasteners & Connectors
Insert Screw 6802569
