  • TUNGALOY EAW13R080M32.0-06 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 6 Flute

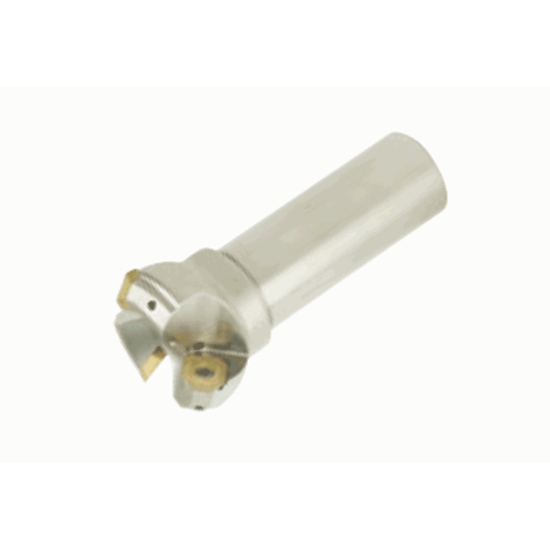

Picture of TUNGALOY EAW13R080M32.0-06 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 6 Flute

TUNGALOY EAW13R080M32.0-06 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 6 Flute

ANSI: EAW13R080M32.0-06

ISO: EAW13R080M32.0-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849823
Delivery date: 3-5 days
$875.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Insert Type Positive
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Made In USA No
Dimensional Specifications
Machine Side Connection Type Cylindrical
Flutes/Inserts 6
Cut Dia Min 3.1500 80.01MM
Overall Len 4.7244 120.00MM
Cutter Dia 3.1500 80.01MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Insert Size Ic 13
Cut Dia Max 3.7001 93.98MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.0394
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style SW
Hand R/L Right
Seat/Nest 6846767
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
