  • TUNGALOY EAW13R080M32.0-04 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

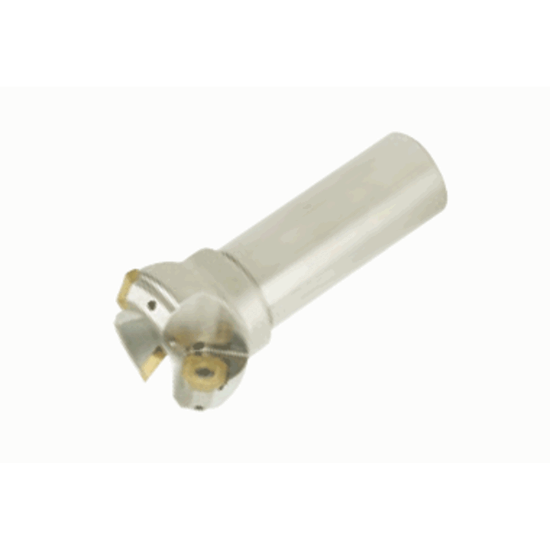

Picture of TUNGALOY EAW13R080M32.0-04 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

TUNGALOY EAW13R080M32.0-04 Milling Cutter 45.0° 3.150 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

ANSI: EAW13R080M32.0-04

ISO: EAW13R080M32.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849820
Delivery date: 3-5 days
$776.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Package Size 1
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 0.1969
Cut Dia Min 3.1500 80.01MM
Cut Dia Max 3.7010 94.01MM
Flutes/Inserts 4
Cutter Dia 3.1500 80.01MM
Machine Side Connection Size 1.2598 32.00MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Shank/Pilot Dia 1.2598 32.00MM
Tool Material Steel
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Seat/Nest 6846767
Insert Style SW
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
