  • TUNGALOY EAW13R063M32.0-05 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

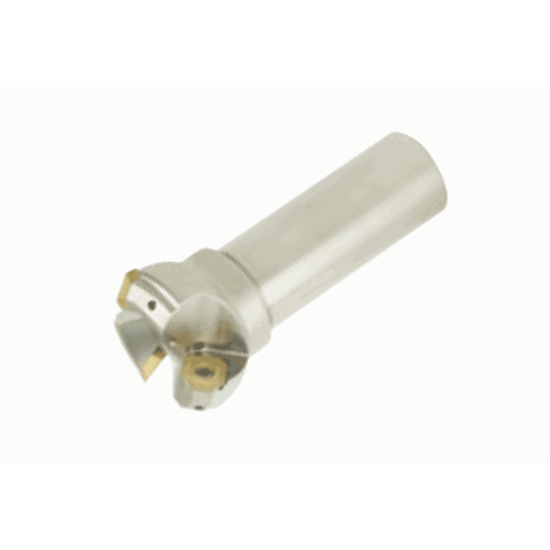

Picture of TUNGALOY EAW13R063M32.0-05 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

TUNGALOY EAW13R063M32.0-05 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 5 Flute

ANSI: EAW13R063M32.0-05

ISO: EAW13R063M32.0-05

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849822
Delivery date: 3-5 days
$729.55

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2598 32.00MM
Cut Dia Max 2.9920 76.00MM
Tool Material Steel
Depth Of Cut Max 0.1969
Overall Len 4.7244 120.00MM
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Insert Style SW
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
