  • TUNGALOY EAW13R063M32.0-04 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

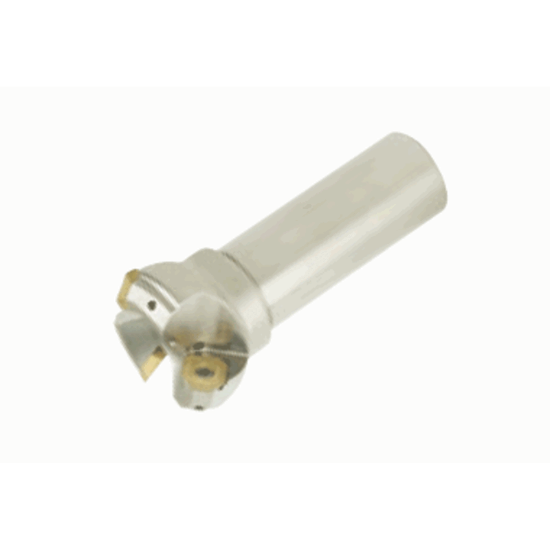

Picture of TUNGALOY EAW13R063M32.0-04 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

TUNGALOY EAW13R063M32.0-04 Milling Cutter 45.0° 2.480 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

ANSI: EAW13R063M32.0-04

ISO: EAW13R063M32.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849819
Delivery date: 3-5 days
$583.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Finishing, Roughing
Application Face Milling
Package Size 1
Insert/Tool Tool
Made In USA No
Shipping State Illinois
Insert Type Positive
Dimensional Specifications
Cut Dia Min 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Cutter Dia 2.4800 62.99MM
Shank/Pilot Dia 1.2598 32.00MM
Depth Of Cut Max 0.1969
Overall Len 4.7244 120.00MM
Flutes/Inserts 4
Cut Dia Max 2.9920 76.00MM
Tool Material Steel
Machine Side Connection Size 1.2598 32.00MM
Cutting & Machining Properties
Hand R/L Right
Seat/Nest 6846767
Insert Shape/Cutter Pocket Shape Square
Coolant Thru Yes
Insert Style SW
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
