  • TUNGALOY EAW13R050M32.0-04 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

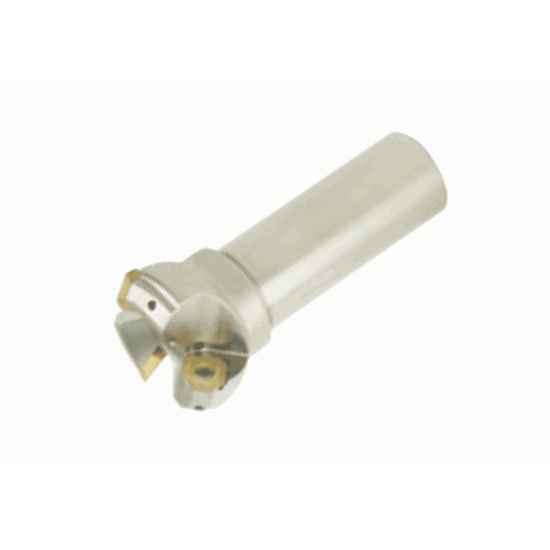

Picture of TUNGALOY EAW13R050M32.0-04 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

TUNGALOY EAW13R050M32.0-04 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 4 Flute

ANSI: EAW13R050M32.0-04

ISO: EAW13R050M32.0-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849821
Delivery date: 3-5 days
$583.70

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Finishing, Semi Finishing
Made In USA No
Shipping State Illinois
Insert Type Positive
Application Face Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 1.2598 32.00MM
Depth Of Cut Max 0.1969
Insert Size Ic 13
Shank/Pilot Dia 1.2598 32.00MM
Flutes/Inserts 4
Cut Dia Min 1.9690 50.01MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Tool Material Steel
Overall Len 4.7244 120.00MM
Cutting & Machining Properties
Insert Style SW
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Fasteners & Connectors
Insert Screw 6815314
Seat Screw 6846768
