  • TUNGALOY EAW13R050M32.0-03 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 3 Flute

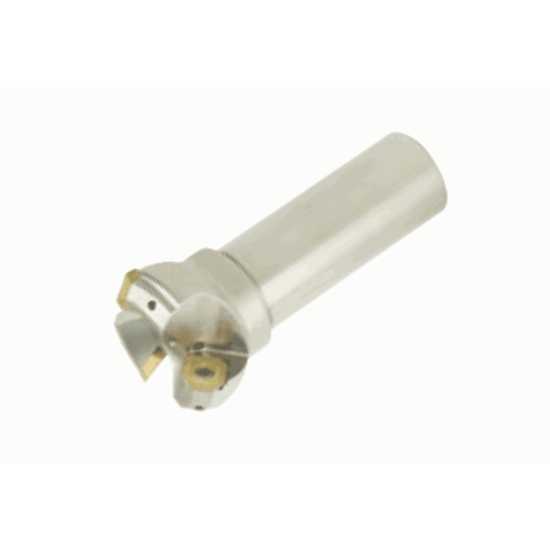

Picture of TUNGALOY EAW13R050M32.0-03 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 3 Flute

TUNGALOY EAW13R050M32.0-03 Milling Cutter 45.0° 1.967 Cutter Diameter Cylindrical Shank1.2598 4.724 OAL 3 Flute

ANSI: EAW13R050M32.0-03

ISO: EAW13R050M32.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849818
Delivery date: 3-5 days
$437.75

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling
Package Size 1
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Insert Size Ic 13
Shank/Pilot Dia 1.2598 32.00MM
Cutter Dia 1.9670 49.96MM
Machine Side Connection Size 1.2598 32.00MM
Tool Material Steel
Depth Of Cut Max 0.1969
Overall Len 4.7244 120.00MM
Flutes/Inserts 3
Cut Dia Min 1.9690 50.01MM
Cut Dia Max 2.4800 62.99MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Insert Style SW
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Seat/Nest 6846767
Fasteners & Connectors
Seat Screw 6846768
Insert Screw 6815314
