  • TUNGALOY EAW13R040M32.0-03 Milling Cutter 45.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

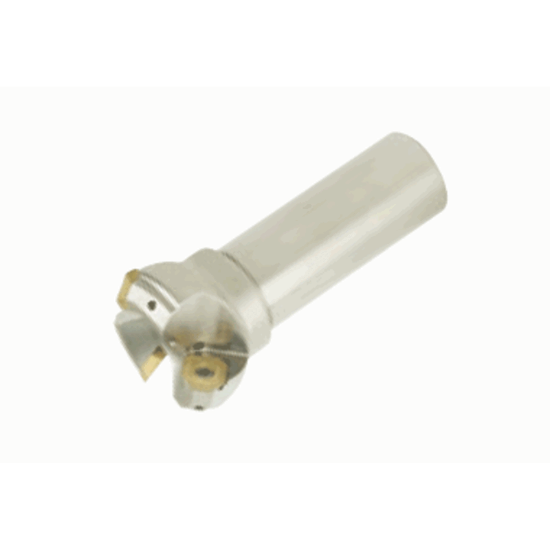

Picture of TUNGALOY EAW13R040M32.0-03 Milling Cutter 45.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

TUNGALOY EAW13R040M32.0-03 Milling Cutter 45.0° 1.575 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 3 Flute

ANSI: EAW13R040M32.0-03

ISO: EAW13R040M32.0-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849817
Delivery date: 3-5 days
$389.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Illinois
Insert Application Semi Finishing, Finishing, Roughing
Package Size 1
Insert Type Positive
Application Face Milling
Made In USA No
Dimensional Specifications
Cutter Dia 1.5750 40.01MM
Tool Material Steel
Machine Side Connection Type Cylindrical
Insert Size Ic 13
Shank/Pilot Dia 1.2598 32.00MM
Cut Dia Max 2.1260 54.00MM
Machine Side Connection Size 1.2598 32.00MM
Overall Len 4.5276 115.00MM
Depth Of Cut Max 0.1969
Cut Dia Min 1.5750 40.01MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style SW
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
