  • TUNGALOY EAW13R032M32.0-02 Milling Cutter 45.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 2 Flute

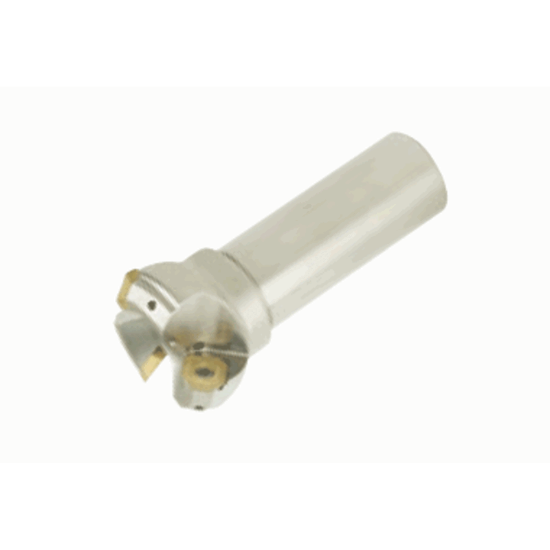

Picture of TUNGALOY EAW13R032M32.0-02 Milling Cutter 45.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 2 Flute

TUNGALOY EAW13R032M32.0-02 Milling Cutter 45.0° 1.260 Cutter Diameter Cylindrical Shank1.2598 4.527 OAL 2 Flute

ANSI: EAW13R032M32.0-02

ISO: EAW13R032M32.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849816
Delivery date: 3-5 days
$259.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Application Finishing, Semi Finishing, Roughing
Insert Type Positive
Application Face Milling
Package Size 1
Dimensional Specifications
Cut Dia Min 1.2600 32.00MM
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.2598 32.00MM
Cutter Dia 1.2600 32.00MM
Tool Material Steel
Insert Size Ic 13
Shank/Pilot Dia 1.2598 32.00MM
Overall Len 4.5276 115.00MM
Cut Dia Max 1.8110 46.00MM
Flutes/Inserts 2
Depth Of Cut Max 0.1969
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SW
Hand R/L Right
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
