  • TUNGALOY EAW13R025M25.0-02 Milling Cutter 45.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

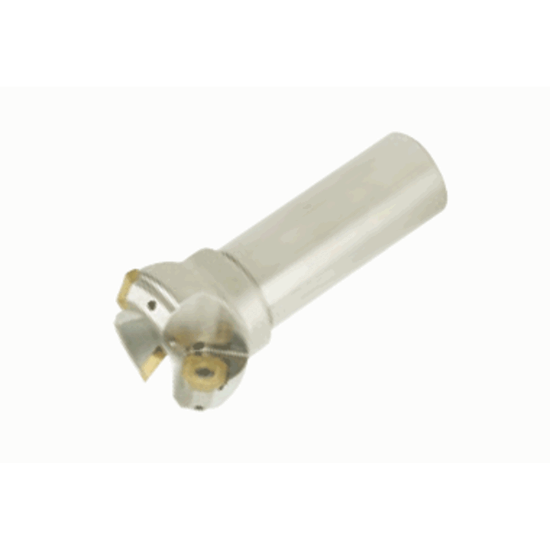

Picture of TUNGALOY EAW13R025M25.0-02 Milling Cutter 45.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

TUNGALOY EAW13R025M25.0-02 Milling Cutter 45.0° 0.984 Cutter Diameter Cylindrical Shank0.9843 4.527 OAL 2 Flute

ANSI: EAW13R025M25.0-02

ISO: EAW13R025M25.0-02

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6849815
Delivery date: 3-5 days
$259.60

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing, Finishing
Made In USA No
Shipping State Illinois
Insert/Tool Tool
Insert Type Positive
Application Face Milling
Package Size 1
Dimensional Specifications
Overall Len 4.5276 115.00MM
Cut Dia Max 0.9840 24.99MM
Flutes/Inserts 2
Cutter Dia 0.9840 24.99MM
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.1969
Cut Dia Min 0.9840 24.99MM
Tool Material Steel
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9844 25.00MM - 63/64
Insert Size Ic 13
Cutting & Machining Properties
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style SW
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 6815314
