  • TUNGALOY EASD05M006C12.0R01 Milling Cutter 45.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.937 OAL 1 Flute

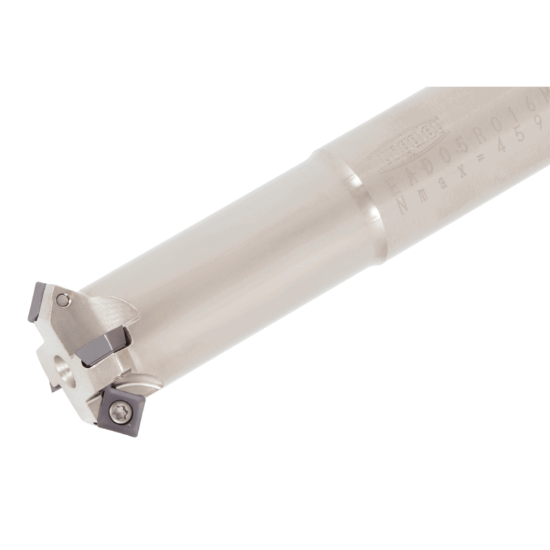

Picture of TUNGALOY EASD05M006C12.0R01 Milling Cutter 45.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.937 OAL 1 Flute

TUNGALOY EASD05M006C12.0R01 Milling Cutter 45.0° 0.472 Cutter Diameter Cylindrical Shank0.4724 3.937 OAL 1 Flute

ANSI: EASD05M006C12.0R01

ISO: EASD05M006C12.0R01

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6727161
Delivery date: 3-5 days
$222.05

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Chamfering, Back Chamfering
Insert Application General Purpose
Made In USA No
Shipping State Illinois
Insert Type Positive
Package Size 1
Dimensional Specifications
Machine Side Connection Type Cylindrical
Depth Of Cut Max 0.1181
Cutter Dia 0.4720 11.99MM
Insert Size Ic 5
Tool Material Steel
Overall Len 3.9370 100.00MM
Cut Dia Min 0.4720 11.99MM
Cut Dia Max 0.4720 11.99MM
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 1
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Inter/Extern External
Coolant Thru No
Insert Style SD
Hand R/L Right
Fasteners & Connectors
Insert Screw 4351854
