  • TUNGALOY E06H-SCLCR04-D070 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.236 Shank

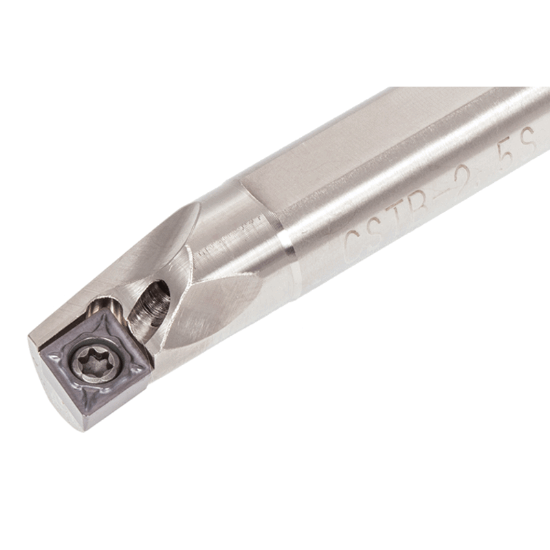

Picture of TUNGALOY E06H-SCLCR04-D070 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.236 Shank

TUNGALOY E06H-SCLCR04-D070 Boring Bar 80.0° Insert Posi,L style, 95deg Approach , Steel Round 0.236 Shank

ANSI: E06H-SCLCR04-D070

ISO: E06H-SCLCR04-D070

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6862291
Delivery date: 3-5 days
$301.00

Important Notes

Posi,L style, 95deg Approach

Details

Screw-on boring bars, for Posi 80deg rhombic insert with 7 deg clearance

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Made In USA No
Insert Application General Purpose
Shipping State Illinois
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.2362 6.00MM
Insert Size Ic 04 "1.4"
Lead Angle 95°
Shank/Pilot Dia 0.2362 6.00MM
Min Bore 0.2756
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CC
