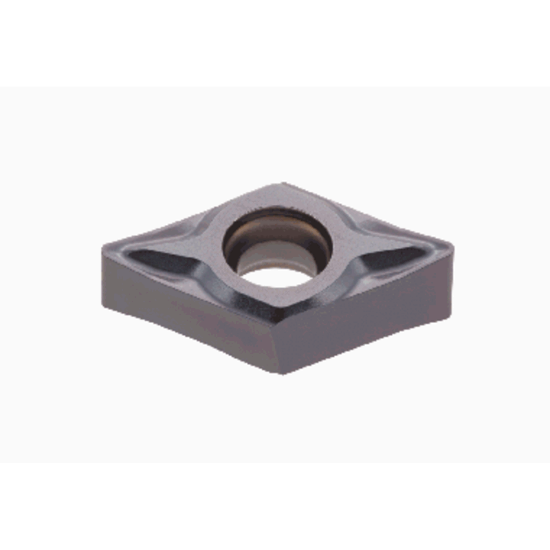

Picture of TUNGALOY DXGU221L TS NS9530 Insert 55.0° 0.016 Corner Radius

TUNGALOY DXGU221L TS NS9530 Insert 55.0° 0.016 Corner Radius

ANSI: DXGU221L TS NS9530

ISO: DXGU070304L TS NS9530

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6723750
Delivery date: 3-5 days
$13.83

Cutting Edge Definition

Cermet is a cutting material combining ceramics and metals (usualט Nickel). The result is a harder substrate than carbide, therefore more wear-resistant, and enables machining at higher cutting speeds. The downside is very low toughness, and therefore, it is used only for finishing applications in stable conditions. Some tougher versions are available today for semi roughing. Used very often in Duplex milling.

Details

Double sided 55deg rhombic inserts with TS chipbreaker for finishing to medium cutting

File Downloads

DXFSTPSTPL

Grade and Coating Description

New non-coated cermet. 1st recommendation grade NS 9530 provides excellent performance. Applicable fo or finishing to medium cutting.

Products specifications
Attribute name Attribute value
General Product Information
Application Turning Insert
Insert Type Negative
Grade NS9530
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Insert Application Finishing
Package Size 10
Dimensional Specifications
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "22"
Cut Rating <48HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutting & Machining Properties
Insert Style DX
Insert Shape/Cutter Pocket Shape 55.0°
Cutting Edge Mat Cermet
