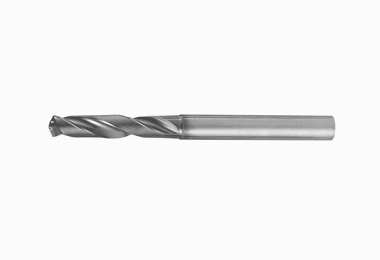

Picture of Tungaloy DSXU6250F05 5/8" GigaJetDrill Series with Coolant hole, L/D=5

Tungaloy DSXU6250F05 5/8" GigaJetDrill Series with Coolant hole, L/D=5

Part Number: TUN6850382 ISO: DSXU6250F05
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1132164
Vendor: Sussex Tool and Supply
$499.68

Description

TUNGALOY TUN6850382 Carbide Drill Cylindrical 0.6250 TiAlN 0.6250 15.88MM - 5/8Cutter Dia 5.0XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 7.6400 194.06MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Tool Dia 0.6250 15.88MM - 5/8
Flute Length 5.0400 128.02MM
Dia Deep 5.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.6250 15.88MM - 5/8
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
