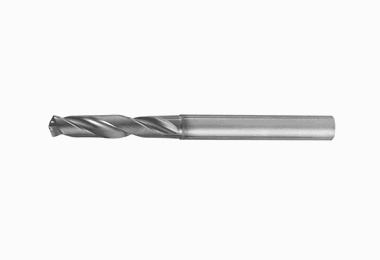

Picture of Tungaloy DSX1550F03 15.5 mm GigaJetDrill Series with Coolant hole, L/D=3, dia=3.0 - 20.0mm

Tungaloy DSX1550F03 15.5 mm GigaJetDrill Series with Coolant hole, L/D=3, dia=3.0 - 20.0mm

Part Number: TUN6818995 ISO: DSX1550F03
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1132138
Vendor: Sussex Tool and Supply
$427.61

Description

TUNGALOY TUN6818995 Carbide Drill Cylindrical 0.6299 TiAlN 0.6102 15.50MM Cutter Dia 3.0XD Carbide Titanium aluminium nitride (TiAlN) or aluminium titanium nitride (AlTiN; for aluminium contents higher than 50%) is a group of metastable hard coatings consisting of nitrogen and the metallic elements aluminium and titanium. This compound as well as similar compounds(such as TiN and TiCN) are most notably used for coating machine tools such and endmills and drills to change their properties, such as increased thermal stability and/or wear resistance. Four important compositions (metal content 100 wt.%) are deposited in industrial scale by physical vapor deposition methods:
Products specifications
Attribute name Attribute value
General Information
Shipping State ILLINOIS
Made In USA NO
Cutter Type Carbide Drill
Coolant Thru Thru Coolant
Type Of Tool Drill
Dimensions & Sizing
Overall Length 5.7480 146.00MM
Shank/Pilot Dia 0.6299 16.00MM
Flutes/Inserts 2
Tool Dia 0.6102 15.50MM
Flute Length 3.1500 80.01MM
Dia Deep 3.0x Dia
Geometry & Angles
Included Angle 140°
Performance & Capacity
Cut Rating <48HRC Steel, Gray Iron, Stainless Steel, Ductile Iron
Cut Dia Min 0.6102 15.50MM
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TiAlN
