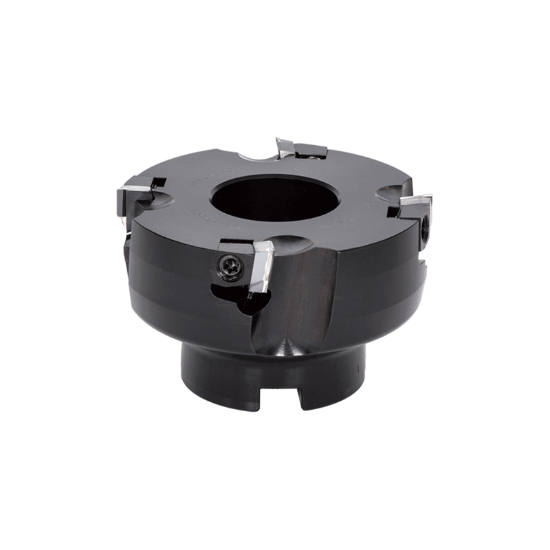

Picture of TUNGALOY DPD24100R Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 4 Flute

TUNGALOY DPD24100R Milling Cutter 90.0° 3.937 Cutter Diameter Shell Arbor 1.2500 4 Flute

ANSI: DPD24100R

ISO: DPD24100R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6816787
Delivery date: 3-5 days
$932.25

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application Semi Finishing, Roughing
Application Face Milling
Package Size 1
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Min 3.9370 100.00MM
Tool Material Steel
Insert Size Ic 24
Flutes/Inserts 4
Depth Of Cut Max 0.2756
Cutter Dia 3.9370 100.00MM
Cut Dia Max 3.9370 100.00MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Hand R/L Right
Coolant Thru No
Insert Shape/Cutter Pocket Shape Square
Insert Style YD
Fasteners & Connectors
Clamp Screw 6816092
Clamp/Wedge 6816818
