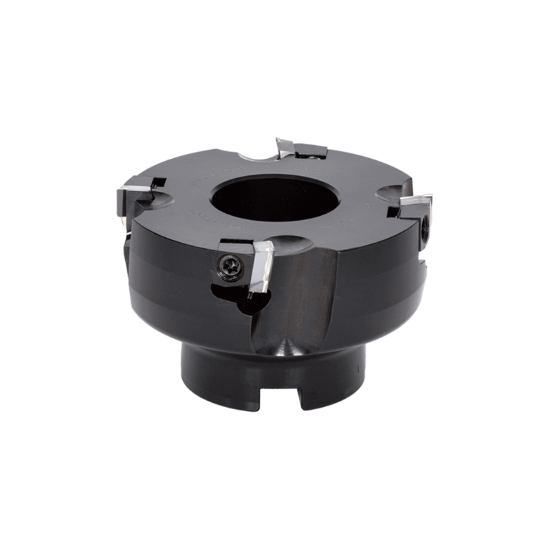

Picture of TUNGALOY DPD24063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 4 Flute

TUNGALOY DPD24063R Milling Cutter 90.0° 2.480 Cutter Diameter Shell Arbor 0.8661 4 Flute

ANSI: DPD24063R

ISO: DPD24063R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6816785
Delivery date: 3-5 days
$786.35

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Insert Application Roughing, Semi Finishing
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Face Milling
Package Size 1
Dimensional Specifications
Insert Size Ic 24
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 0.8661 22.00MM
Flutes/Inserts 4
Cut Dia Min 2.4800 62.99MM
Cut Dia Max 2.4800 62.99MM
Depth Of Cut Max 0.2756
Tool Material Steel
Cutter Dia 2.4800 62.99MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Hand R/L Right
Insert Style YD
Coolant Thru No
Fasteners & Connectors
Clamp/Wedge 6816817
Clamp Screw 6816816
