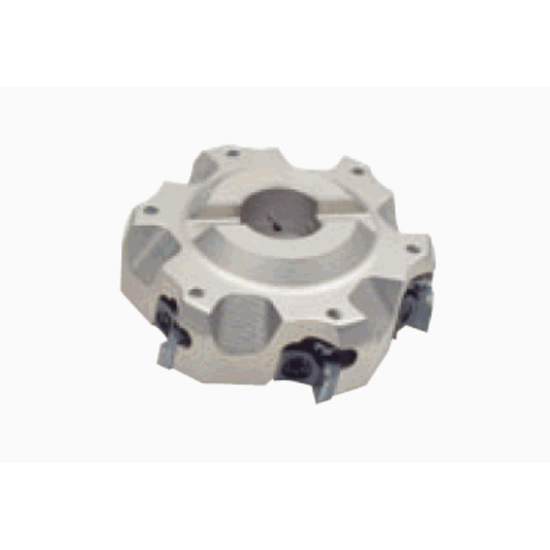

Picture of TUNGALOY DPD09160R Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 1.2500 8 Flute

TUNGALOY DPD09160R Milling Cutter 90.0° 6.299 Cutter Diameter Shell Arbor 1.2500 8 Flute

ANSI: DPD09160R

ISO: DPD09160R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6848912
Delivery date: 3-5 days
$2,165.30

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Package Size 1
Insert/Tool Tool
Application Side Milling
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Cut Dia Max 6.2990 159.99MM
Cut Dia Min 6.2990 159.99MM
Tool Material Steel
Flutes/Inserts 8
Insert Size Ic 9
Depth Of Cut Max 0.2756
Cutter Dia 6.2990 159.99MM
Machine Side Connection Type Face Mill/Shell Mill
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape Square
Insert Style YD
Fasteners & Connectors
Seat Screw 6603049
Clamp/Wedge 6822429
Clamp Screw 6816816
