ANSI: DNGA433 LX21
ISO: DNGA150412 LX21
Share This:
Ceramic Inserts are indexable inserts made from Aluminium Oxide Al2O3 or Silicon Nitride Si3N4. They have a hardness of 2,100-2,500 HV (About 40% above carbide), which enables them to machine Hard Steel up to 55 HRC. It can also machine cast iron and nickel-based alloys six times faster compared to coated carbide inserts. Wisker fiber available to get the best toughness.

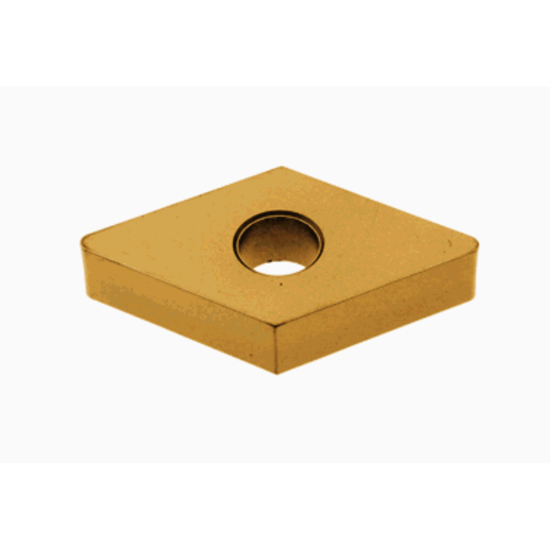

Negative relief ang., M/G class, 55deg rhombic insert, without chipbreaker for finishing to medium cutting
Alumina base, Suitable for continuous cutting of high-hardened material
