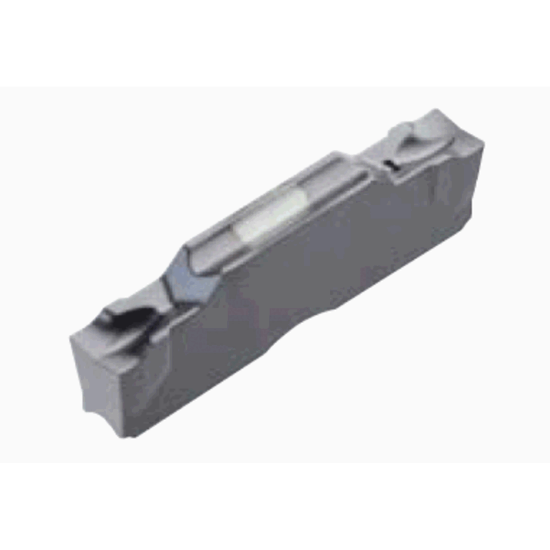

Picture of TUNGALOY DGS1.4-016 AH725 Clamp Down Face Grooving Insert AlTiN 0.006 Corner Radius 0.055 Wide

TUNGALOY DGS1.4-016 AH725 Clamp Down Face Grooving Insert AlTiN 0.006 Corner Radius 0.055 Wide

ANSI: DGS1.4-016 AH725

ISO: DGS1.4-016 AH725

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6860596
Delivery date: 3-5 days
$25.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

File Downloads

DXFSTPSTPL

Grade and Coating Description

PVD Coated Grade for general purpose of machining steel & stainless in a wide variety of applications.

Products specifications
Attribute name Attribute value
General Product Information
Coating AlTiN
Insert Application General Purpose
Grade AH725
Shipping State Illinois
Application Grooving & Parting Insert
Insert/Tool Insert
Insert Type Positive
Made In USA No
Package Size 10
Dimensional Specifications
Cutting Width 0.0550 1.40MM
Insert Size Ic 1
Corner Radius 0.0063 0.16MM
Depth Of Cut Max 0.6300
Cut Rating <42HRC Steel, High Temp, Stainless Steel
Cutting & Machining Properties
Insert Style DG
Cutting Edge Mat Carbide
