  • TUNGALOY DDQNR2525M15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

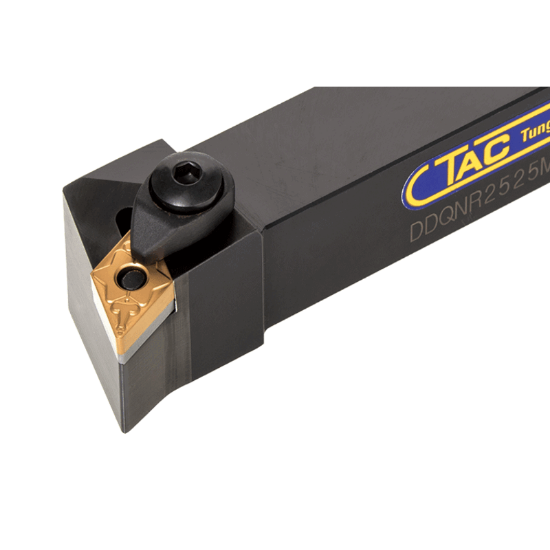

Picture of TUNGALOY DDQNR2525M15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY DDQNR2525M15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: DDQNR2525M15

ISO: DDQNR2525M15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802961
Delivery date: 3-5 days
$186.55

Important Notes

Neg,Q/H style, 45deg Approach

Details

One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Made In USA No
Insert/Tool Tool
Application Ext.Turning
Package Size 1
Insert Application General Purpose
Shipping State Illinois
Dimensional Specifications
Insert Size Ic 12 "43"
Clearance Angle 12.5°
Shank/Pilot Dia 0.9843 25.00MM
Overall Len 5.9055 150.00MM
Lead Angle 107.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Insert Style DN
Inter/Extern External
Hand R/L Right
Insert Shape/Cutter Pocket Shape 55.0°
