  • TUNGALOY DDQNL3225P1506 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

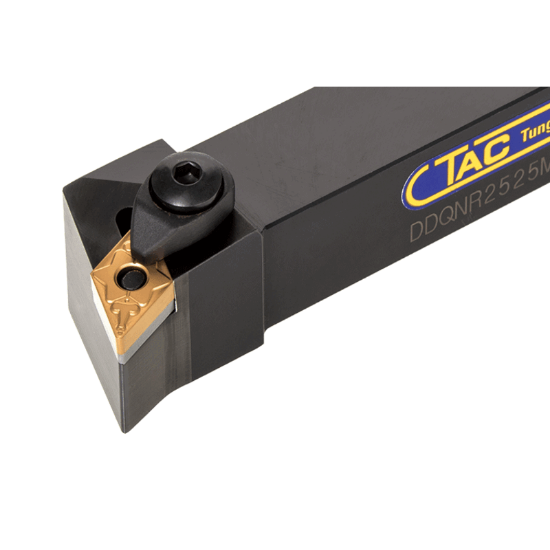

Picture of TUNGALOY DDQNL3225P1506 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

TUNGALOY DDQNL3225P1506 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.984 Shank

ANSI: DDQNL3225P1506

ISO: DDQNL3225P1506

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802956
Delivery date: 3-5 days
$208.35

Important Notes

Neg,Q/H style, 45deg Approach

Details

One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Insert Type Negative
Made In USA No
Shipping State Illinois
Dimensional Specifications
Clearance Angle 12.5°
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 6.6929 170.00MM
Insert Size Ic 15 "44"
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 107.5°
Machine Side Connection Size 0.9843 25.00MM
Cutting & Machining Properties
Hand R/L Left
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Inter/Extern External
