  • TUNGALOY DDQNL2020K15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

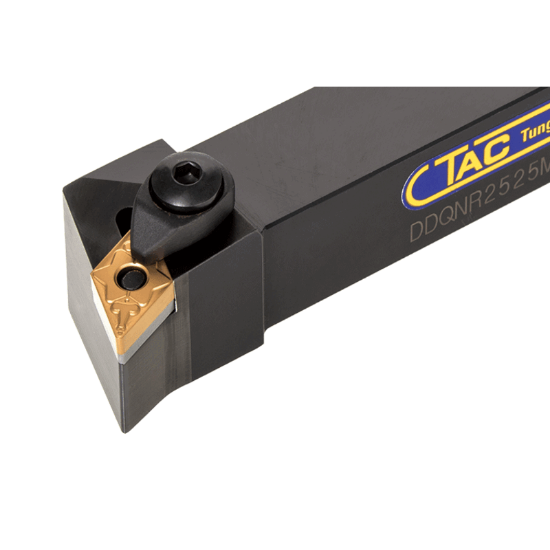

Picture of TUNGALOY DDQNL2020K15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

TUNGALOY DDQNL2020K15 Stick Tool 55.0° Insert Neg,Q/H style, 45deg Approach , Steel Square 0.787 Shank

ANSI: DDQNL2020K15

ISO: DDQNL2020K15

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6802951
Delivery date: 3-5 days
$178.80

Important Notes

Neg,Q/H style, 45deg Approach

Details

One-Double toolholder with 107.5deg approach angle, for negative 55deg rhombic inserts

File Downloads

DXFSTPSTPL
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Made In USA No
Insert/Tool Tool
Shipping State Illinois
Application Ext.Turning
Package Size 1
Dimensional Specifications
Overall Len 4.9213 125.00MM
Lead Angle 107.5°
Insert Size Ic 12 "43"
Machine Side Connection Size 0.7874 20.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Shank/Pilot Dia 0.7874 20.00MM
Clearance Angle 12.5°
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Left
Inter/Extern External
Insert Style DN
